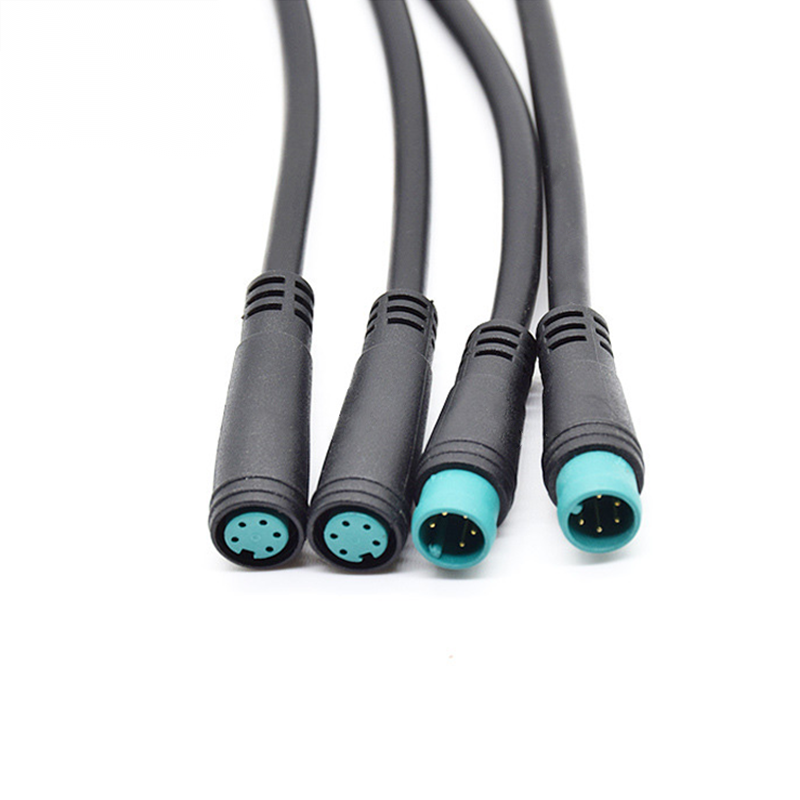

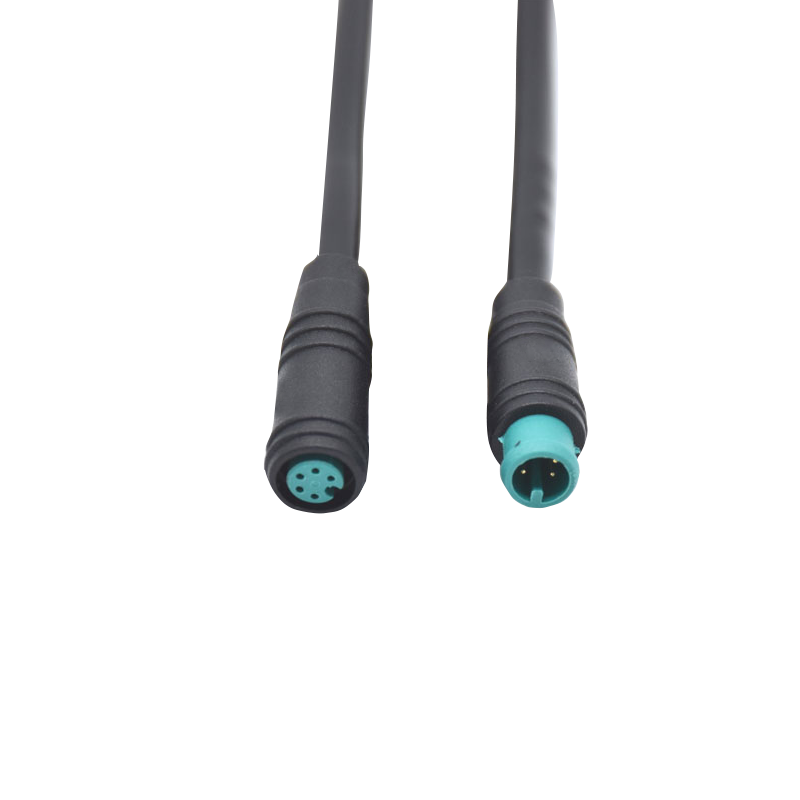

Union Precision Electronic LIMITED
Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components. As a leading company in China's connector industry, we focus on
Add to Cart
UPE company is a modern enterprise dedicated to the research and development, production and sales of industrial connectors for ten years. Since its establishment, it has continuously adopted sincere suggestions from customers in various industries and has continuously absorbed international advanced technology and design. Philosophy, through the hard work of our R&D team, customer-oriented, provide personalized solutions, continuous product innovation, and obtain a number of patents and certifications. The company adheres to the business philosophy of "innovation and pursuit, truth-seeking and benevolence". Now it has established good and stable partnerships with many well-known brand companies at home and abroad, gradually forming advantages in technology and brand, and always providing customers with high-quality products and excellent products. Service, and constantly strengthen and improve the overall quality of the company, seek development in the competition, seek opportunities in the challenge, UPE is willing to sincerely work with you to advance together to create brilliant.
Product Advantages:
Working temperature:-40~+105℃
Male/female contact material:Grass(gold plating)
Rated Voltage:24 V DC 0 (AC 110 V, 110 V)
Rated current:1-50A
Application: E-Bike, Electric Motorcycle, High-Speed Electric Scooter, Electric Scooter
Product Details
| Contact Cores | 2Pin | 3Pin | 4Pin | 5Pin | 6Pin |
| Rated Voltage | 2A | 2A | 2A | 1.5A | 1.5A |
| Rated Current | 60V AC | 60V AC | 60V AC | 40V AC | 40V AC |
| Contact Resistance | 10mΩ | 10mΩ | 10mΩ | 10mΩ | 10mΩ |
| Insulation Resistance | 100MΩ | 100MΩ | 100MΩ | 100MΩ | 100MΩ |
| IP-Code | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cable Specifications | ≦0.3mm² | ≦0.2mm² | ≦0.2mm² | ≦0.2mm² | ≦0.2mm² |
| Cable length | 0-4mm | 0-4mm | 0-4mm | 0-4mm | 0-4mm |
| scope of application | LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on |
| Types | Waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
| Interface type | AC/DC |
| Shape | Round/flat look |
| Process | Stamping/welding/injection molding |
| Feature | Waterproof |
| Contact material | Pure phosphor copper |
| Joint material | PVC/PBT/PA66 / PC + ABS |
| Some conclusions | 2-12 core |
| Pin number | 2-12 needle |
| line length | Any (mm) |
| Form | Socket, plug stamping or injection after welding |
| Rated voltage | 24 V DC 0 (AC 110 V, 110 V) |
| Current rating | 1-50A |
| Breakdown voltage | 1500 V or higher (special require should be mentioned in advance) |
| Working temperature | - 40 ~ 105 ° C |
| Protection grade | IP65 - IP68 (other requirement. When ordering, please put forward) |
| Wire materials | PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line |
| Certification | Can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
| Appearance color | Back, white, transparent, etc |
| Normal product | Joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products |
| Some conclusions | 2 core |
| Cable inside section | 0.75 square (normal) |
| Cable length | Any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit |
